英制過渡接頭

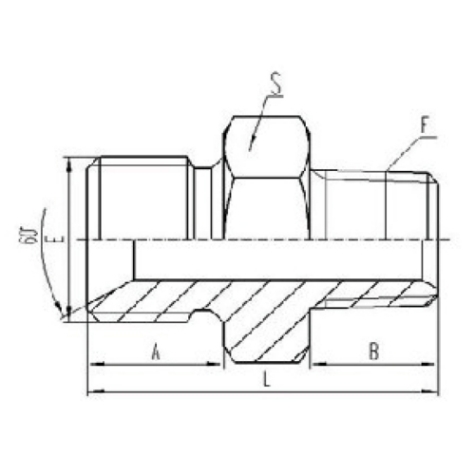

名稱：英制外螺紋60°內錐面密封或組合墊密封|美制布錐管外螺紋密封
詳細信息
英制外螺紋60°內錐面密封或組合墊密封|美制布錐管外螺紋密封的詳細介紹：
|
代 號
|
螺紋 THREAD
|
尺 寸 DIMENSIONS
|
||||
|
PART NO.
|
E
|
F
|
A
|
B
|
S
|
L
|
|
1BN-02 |
G1/8"X28 |
Z1/8"X27 |
10 |
10.5 |
14 |
26 |
|
1BN-04-02
|
G1/4"X19
|
Z1/8"X27
|
12
|
10.5
|
19
|
28
|
|
1BN-04
|
G1/4"X19
|
Z1/4"X18
|
12
|
15
|
19
|
32
|
|
1BN-04-06
|
G1/4"X19
|
Z3/8"X18
|
12
|
16
|
19
|
33
|
|
1BN-04-08
|
G1/4"X19
|
Z1/2"X14
|
12
|
19.5
|
22
|
39
|
|
1BN-06-04
|
G3/8"X19
|
Z1/4"X18
|
13.5
|
15
|
22
|
35.5
|
|
1BN-06
|
G3/8"X19
|
Z3/8"X18
|
13.5
|
16
|
22
|
36.5
|
|
1BN-06-08
|
G3/8"X19
|
Z1/2"X14
|
13.5
|
19.5
|
24
|
40.5
|
|
1BN-08-06
|
G1/2"X14
|
Z3/8"X18
|
16
|
16
|
27
|
41
|
|
1BN-08
|
G1/2"X14
|
Z1/2"X14
|
16
|
19.5
|
27
|
45
|
|
1BN-08-12
|
G1/2"X14
|
Z3/4"X14
|
16
|
19.5
|
30
|
45
|
|
1BN-08-16
|
G1/2"X14
|
Z1"X11.5
|
16
|
25.5
|
36
|
51
|
|
1BN-10-08
|
G5/8"X14
|
Z1/2"X14
|
17.5
|
19.5
|
30
|
46.5
|
|
1BN-10-12
|
G5/8"X14
|
Z3/4"X14
|
17.5
|
19.5
|
30
|
46.5
|
|
1BN-12-04
|
G3/4"X14
|
Z1/4"X18
|
18.5
|
15
|
32
|
43.5
|
|
1BN-12-06
|
G3/4"X14
|
Z3/8"X18
|
18.5
|
16
|
32
|
44.5
|
|
1BN-12-08
|
G3/4"X14
|
Z1/2"X14
|
18.5
|
19.5
|
32
|
48.5
|
|
1BN-12
|
G3/4"X14
|
Z3/4"X14
|
18.5
|
19.5
|
32
|
48.5
|
|
1BN-12-16
|
G3/4"X14
|
Z1"X11.5
|
18.5
|
25.5
|
36
|
53.5
|
|
1BN-16-08
|
G1"X11
|
Z1/2"X14
|
20.5
|
20
|
41
|
52.5
|
|
1BN-16-12
|
G1"X11
|
Z3/4"X14
|
20.5
|
19.5
|
41
|
52.5
|
|
1BN-16
|
G1"X11
|
Z1"X11.5
|
20.5
|
25.5
|
41
|
58
|
|
1BN-16-20
|
G1"X11
|
Z1.1/4"X11.5
|
20.5
|
26.5
|
46
|
58.5
|
|
1BN-20-16
|
G1.1/4"X11
|
Z1"X11.5
|
20.5
|
25.5
|
50
|
59.5
|
|
1BN-20
|
G1.1/4"X11
|
Z1.1/4"X11.5
|
20.5
|
26.5
|
50
|
60.5
|
|
1BN-20-24
|
G1.1/4"X11
|
Z1.1/2"X11.5
|
20.5
|
27.5
|
50
|
61.5
|
|
1BN-24-20
|
G1.1/2"X11
|
Z1.1/4"X11.5
|
23
|
26.5
|
55
|
63
|
|
1BN-24
|
G1.1/2"X11
|
Z1.1/2"X11.5
|
23
|
27.5
|
55
|
66
|
|
1BN-24-32
|
G1.1/2"X11
|
Z2"X11.5
|
23
|
27.5
|
65
|
66
|
|
1BN-32-20
|
G2"X11
|
Z1.1/4"X11.5
|
25.5
|
26.5
|
70
|
67.5
|
|
1BN-32-24
|
G2"X11
|
Z1.1/2"X11.5
|
25.5
|
27.5
|
70
|
68.5
|
|
1BN-32
|
G2"X11
|
Z2"X11.5
|
25.5
|
27.5
|
70
|
69.5
|
英制外螺紋60°內錐面密封或組合墊密封|美制布錐管外螺紋密封
